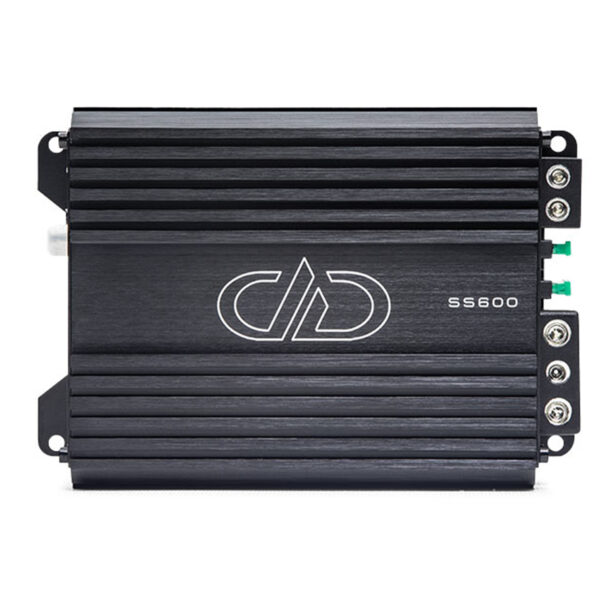

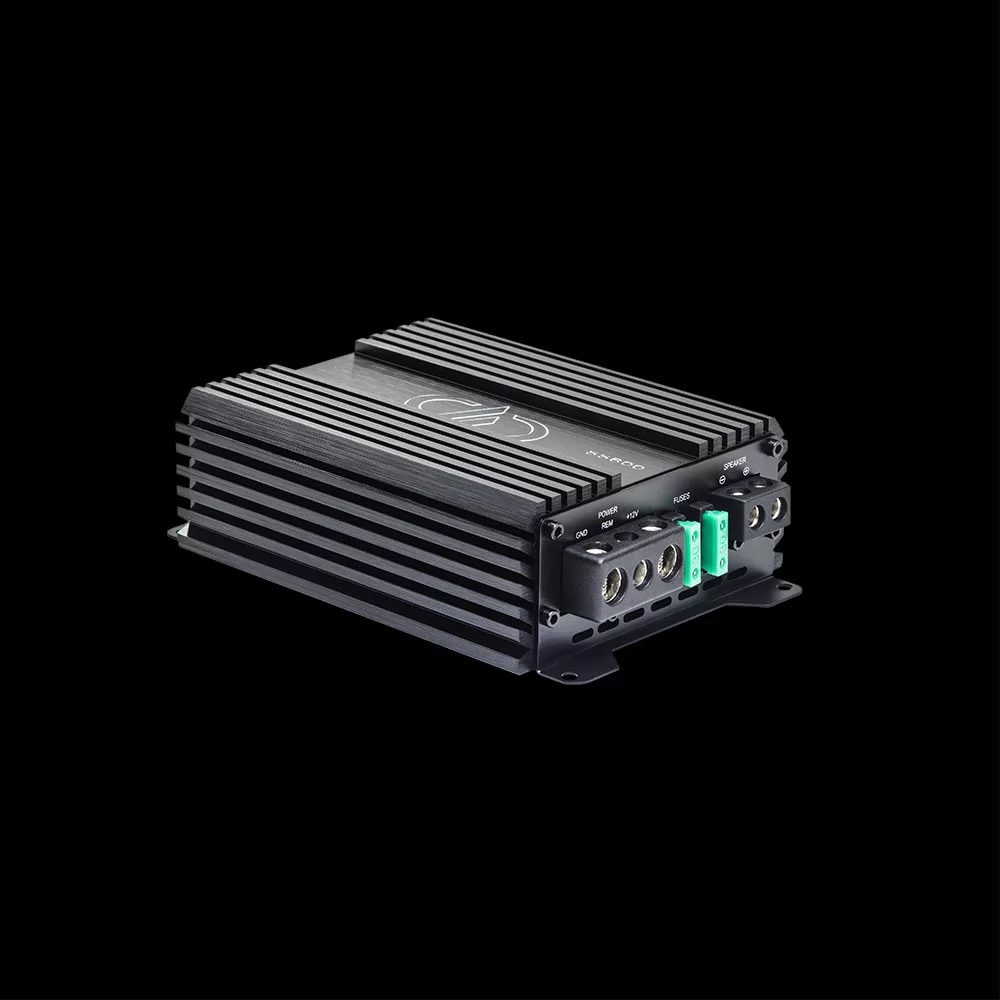

Digital Designs SS600

R2899.00
Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    The new SS amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area. All major components have been upgraded; higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.

    These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is not only tangible, but audibly apparent.

    Big clean power from a small package is what the SS600 does best, 600 Watts of continuous power at less than 1% THD+N. Within its chassis you’ll discover a selection of the best branded electrical components, 4 layer PCB and large toroidal transformer. Together, these elements synergize to enrich your system with precision and power.

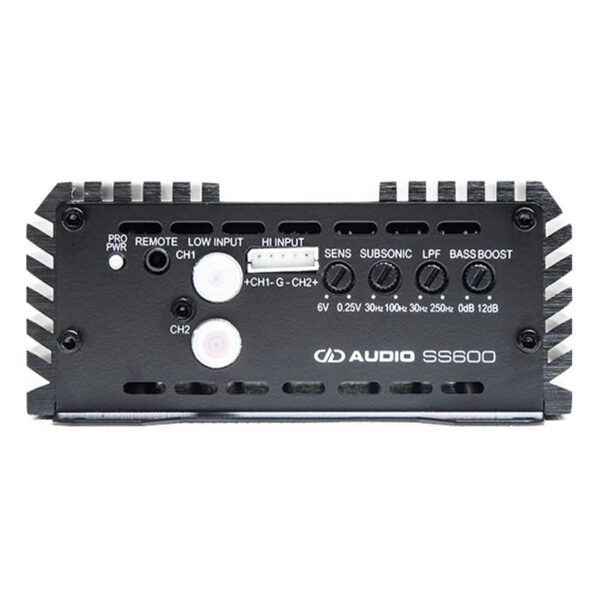

    • High Level Inputs
    • 12dB/Oct High Pass/Low Pass X-Overs
    • Heavyweight DD Aluminum Chassis

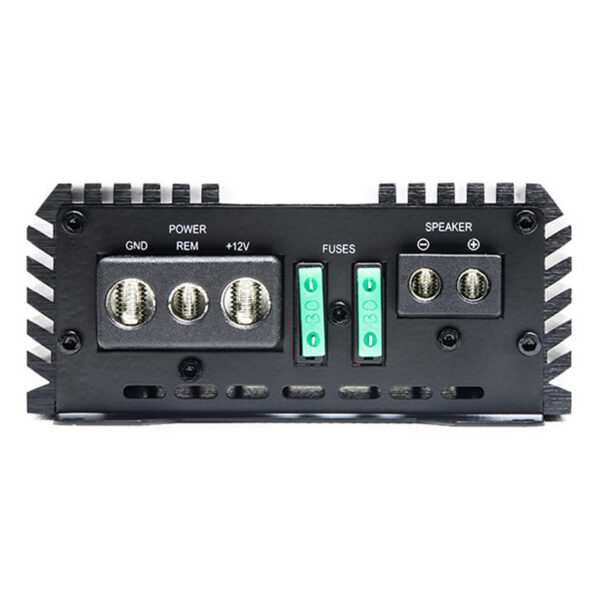

    • Set Screw Power and Speaker Terminals
    • Remote Gain Control
    • 4 AWG Power Terminals

    Specifications

    Operating Voltage: 9 – 16
    Test Voltage: 14.4
    Input Channel(s): 1
    Output Channel(s): 1
    Continuous Wattage @4ohm: 250
    Continuous Wattage @2ohm: 350
    Continuous Wattage @1ohm: 600
    Max Current Draw (Amps): 60
    RCA Input Voltage Sensitivity: 6 – 0.25
    High-Level Input Voltage Sensitivity: 20 – 1.1
    RCA Input S/N: > 95
    Damping Factor: > 100
    THD: < 0.1%
    Bass Boost: 12
    Frequency Response (Hz): 20 – 20k
    Sub-Sonic Filter: 30 – 100
    Low-Pass Filter: 35 – 250
    Remote Control: Remote Included in Box
    Power Wire Gauge: 4
    Speaker Wire Gauge: 12
    Dimensions (Inches): 5.75 x 4.6 x 2
    Dimensions (MM): 141 x 117 x 50
    Shipping Weight (Lbs): 4
